Wi-Fi Standards IEEE 802.11a/b/g/n/ac (Wave-2)
Antennas
2 dual band internal antennas
2.4GHz, gain 3dBi
5 GHz, gain 4dBi
Wi-Fi Data Rates
IEEE 802.11ac: 6.5 Mbps to 867 Mbps
IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
IEEE 802.11n: 6.5Mbps to 300Mbps; 400Mbps with 256-QAM on 2.4Ghz
IEEE 802.11b: 1, 2, 5.5, 11 Mbps
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
*Actual throughput may vary depending on many factors including environmental conditions, distance between
devices, radio interference in the operating environment and mix of devices in the network
Frequency Bands 2.4 GHz Radio: 2412 – 2484 MHz
5 GHz Radio: 5180-5825 MHz
Channel Bandwidth 2.4G: 20 and 40 MHz
5G: 20,40 and 80 MHz
Wi-Fi and System Security
WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES), anti-hacking secure boot and critical
data/control lockdown via digital signatures, unique security certificate and random default
password per device
MIMO 2x2:2 2.4GHz (MIMO)
2x2:2 5GHz (MU-MIMO)
Coverage Range Up to 165 meters
*coverage range can vary based on environment
Maximum TX Power
2.4G:24dBm
5G:22dBm
*Maximum power varies by country, frequency band and MCS rate
Receiver Sensitivity
2.4G
802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm @6Mbps, -75dBm@54Mbps;
802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7
5G
802.11a: -92dBm @6Mbps, -74dBm @54Mbps; 802.11ac 20MHz: -67dBm@MCS8; 802.11ac: HT40:-
63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9
SSIDs 16 SSIDs total, 8 per radio (2.4 Ghz and 5 Ghz)
Concurrent Clients 100+
Network Interfaces 2 x autosensing 10/100/1000 Base-T Ethernet Ports
Auxiliary Ports 1 x Reset Pinhole, 1 x Kensington lock
Mounting Indoor wall or ceiling mount, kits included
LEDs 3 x tri-color LED for device tracking and status indication
Network Protocols IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS 802.11e/WMM, VLAN, TOS
Network Management
Embedded controller can manage up to 50 local GWN APs
GWN.Cloud offers a free cloud management platform for unlimited GWN APs
GWN Manager offers premise-based software controller for up to 3,000 GWN APs
Power and Green Energy Efficiency PoE 802.3af/ 802.3at;
Maximum Power Consumption:10.16W
Environmental
Operation: 0°C to 40°C
Storage: -10°C to 60°C
Humidity: 10% to 90% Non-condensing
Physical Unit Dimension: 180.4mmx180.4mmx40.8mm; Unit Weight: 388.2g
Entire Package Dimension: 228.5x220x79mm; Entire Package Weight: 719.3g

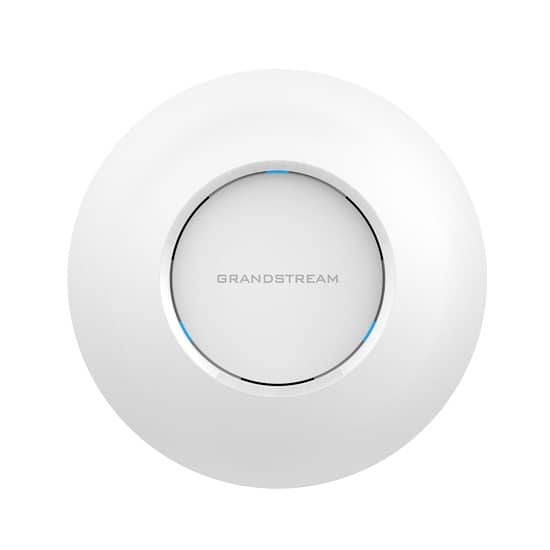

Package Content GWN7605 802.11ac Wireless AP, Mounting Kits, Quick Start Guide
Compliance FCC, CE, RCM, IC
