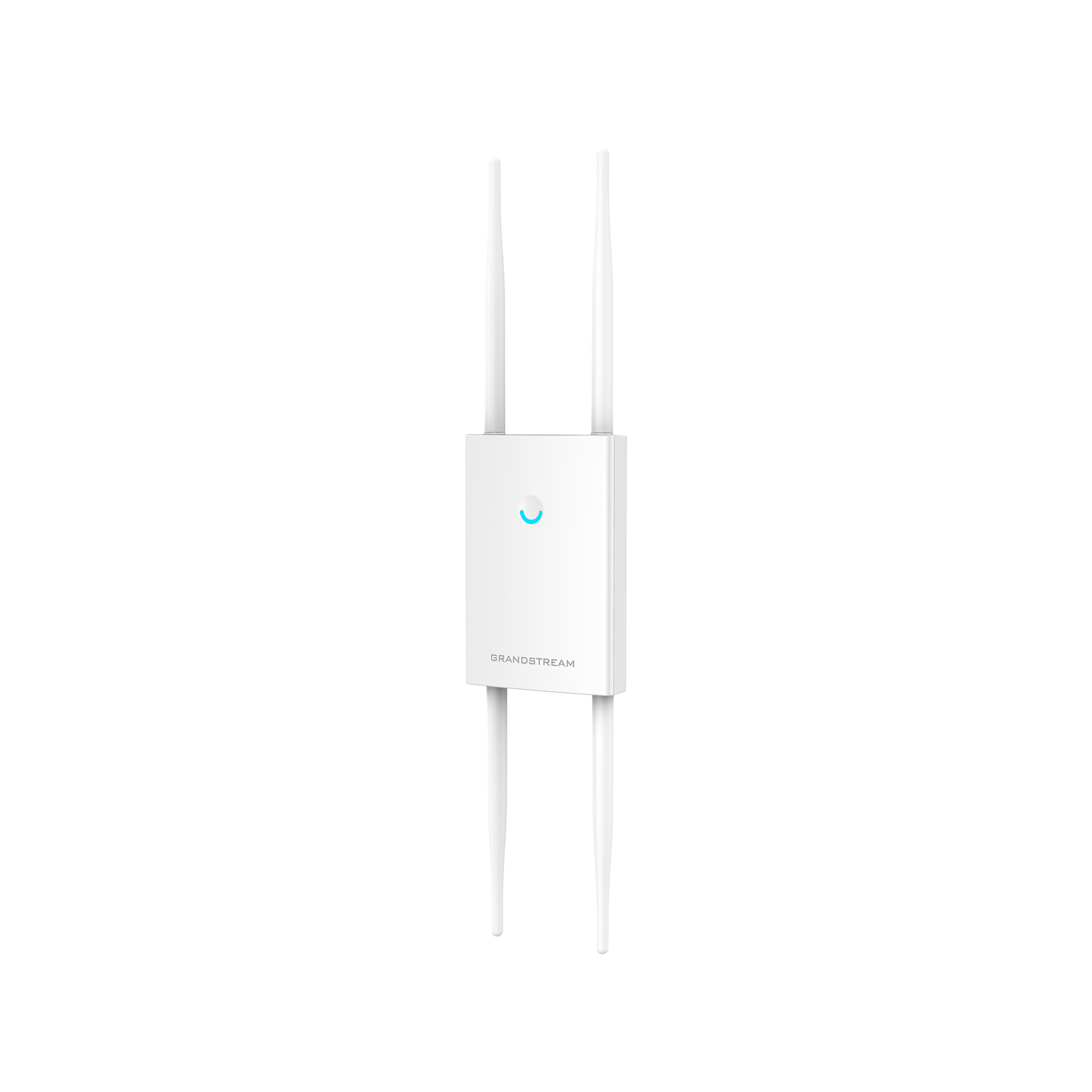

اکسس پوینت بی سیم گرنداستریم مدل GWN7630LR

Wi-Fi Standards IEEE 802.11a/b/g/n/ac (Wave-2)

Antennas

4 detachable/changeable dual-band omnidirectional antennas

2.4GHz, gain 3.5dBi

5GHz, gain 3.5dBi

Wi-Fi Data Rates

IEEE 802.11ac: 6.5 Mbps to 1733Mbps

IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

IEEE 802.11n: 6.5Mbps to 600Mbps; 800Mbps with 256-QAM on 2.4Ghz

IEEE 802.11b: 1, 2, 5.5, 11Mbps

IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

*Actual throughput may vary depending on many factors including environmental conditions, distance

between devices, radio interference in the operating environment and mix of devices in the network

Frequency Bands

2.4 GHz Radio: 2412 – 2484 MHz

5GHz Radio: 5150-5250MHz, 5250-5350MHz, 5470-5725MHz, 5725-5850MHz

*Not all frequency bands can be used in all regions.

Channel Bandwidth 2.4G: 20 and 40MHz

5G: 20, 40 and 80MHz

System Security

WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise, anti-hacking secure boot and critical data/control

lockdown via digital signatures, unique security certificate and random default password per

device

MIMO 4x4:4 2.4G (MIMO), 4x4:4 5G (MU-MIMO)

Coverage Range Up to 300 meters

*Coverage range can vary based on environment

Maximum TX Power

2.4G: 27 dBm

5G: 25 dBm

*Maximum power varies by country, frequency band, and MCS rate

Receiver Sensitivity

2.4G

802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm @6Mbps, -75dBm@54Mbps;

802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7

5G

802.11a: -92dBm @6Mbps, -74dBm @54Mbps; 802.11ac 20MHz: -67dBm@MCS8; 802.11ac: HT40:-

63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9

SSIDs 16 SSID per radio

Concurrent Clients Up to 250+

Network Interfaces 2× autosensing 10/100/1000 Base-T Ethernet Ports

Auxiliary Ports 1× Reset Pinhole

Mounting Wall mount or pole mount - kits included

LEDs 1× tri-color LEDs for device tracking and status indication

Network Protocols IPv4/IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM

QoS 802.11e/WMM, VLAN, TOS

Network Management

Embedded controller can manage up to 50 local GWN APs

GWN.Cloud offers a free cloud management platform for unlimited GWN APs

GWN.Manager (coming soon) offers premise-based software controller for up to 3,000 GWN APs

Power and Green Energy Efficiency PoE 802.3at;

Max Consumption: 16.5W

Environmental

Operation: -30°C to 60°C

Storage: -30°C to 70°C

Humidity: 5% to 95% Non-condensing

Physical

Unit Dimension: 533.1 × 115 × 40mm; Unit Weight: 564g

Unit + Mounting Kits Dimension : 533.1×115 ×62mm; Unit + Mounting Kits Weight : 706g

Entire Package Dimension: 258 × 247× 86mm; Entire Package Weight: 978g

Package Content GWN7630LR 802.11ac Wireless AP, Mounting Kits, Quick Start Guid
