The DGS-F1100-10PS-E is equipped with advanced security features such as Static MAC, Storm
Control, and IGMP Snooping. Static MAC allows users to create a MAC whitelist for specific ports,
helping administrators limit network access to authorized devices only. Storm Control monitors
broadcast, multicast, or unknown unicast traffic and will start blocking or discarding packets which
could flood the network when the defined threshold is exceeded. IGMP Snooping can reduce the
load of L3 multicast routers and save bandwidth in network throughput The IEEE 802.3x Flow
Control function allows servers to directly connect to the switch for fast, reliable data transfers.
The switch also supports advanced features such as static routes, which allow network
administrators to divide the network into VLANs, increasing network efficiency. The DGS-F1100-
10PS-E supports Voice VLAN and Port VLAN, allows voice and video traffic to be automatically
identified and handled differently than regular network traffic, adding a layer of isolation and
allowing Quality of Service (QoS) to be applied.

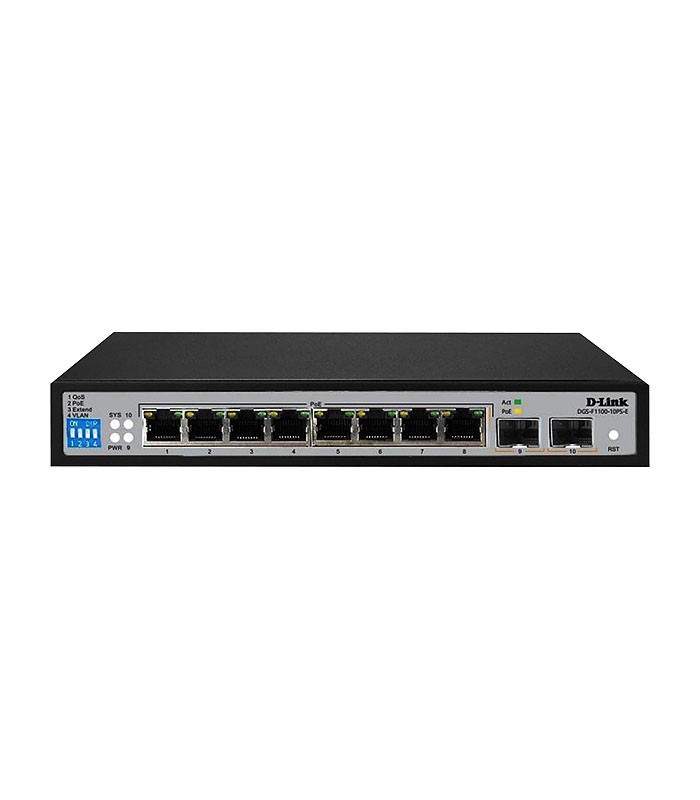

DGS-F1100-10PS-E poeسوییچ دلینک
Price range: تومان۶,۷۵۰,۰۰۰ through تومان۶,۹۰۰,۰۰۰
- 8 x 10/100/1000BASE-T PoE ports
- 2 x SFP ports
- Supports IEEE 802.3at PoE
- Innovative D-Link Green energy saving features
| گارانتی |
بدون گارانتی, گارانتی 12 ماهه تکنولینک |
|---|
برای ثبت نقد و بررسی وارد حساب کاربری خود شوید.
Model • DGS-F1100-10PS-E
Interfaces
• 8 x 10/100/1000BASE-T
• 2 x 100/1000 Mbps SFP ports
Port Standards
• IEEE 802.3: Ethernet Media Access Control (MAC) protocol IEEE 802.3i:10BASE-T Ethernet
• IEEE 802.3u:100BASE-TX fast Ethernet IEEE 802.3ab:1000BASE-T gigabit Ethernet
• IEEE 802.3z:1000BASE-X gigabit Ethernet fiber） IEEE 802.3ad: comply link aggregation standard IEEE
802.3x: flow control
• IEEE 802.1p: About the traffic priority of the second layer of QoS / Cos protocol (multicast filtering)
• IEEE 802.1q: VLAN Bridge operation IEEE 802.1d:STP spanning tree IEEE 802.1s: MSTP spanning tree
• IEEE 802.1w: RSTP spanning tree
PoE
PoE Standards • IEEE 802.3af/at
PoE Capable Ports • Port 1-8 can support up to 250m @10Mbps with Extend Enable
Power Budget • 96W (30W max. per port)
Uplink Port Settings
From Port • Specifies the start port in the range for Uplink Ports. These are used for connecting the surveillance
VLAN with other switches.
To Port • Specifies the end port in the range for Uplink Ports. These are used for connecting the surveillance
VLAN with other switches
Network Cables • UTP Cat. 5, Cat. 5e (100 m max.)
Duplex Mode
• Full/Half-duplex for 10/100 Mbps
• Full duplex for 1000 Mbps
Performance
Switching Capacity • 20 Gbps
Transmission Method • Store-and-forward
MAC Address Table • 8K entries
Maximum 64 Byte Packet
Forwarding Rate • 14.88 Mpps
LED’s
Power ✓
System ✓
Physical/Environmental
Power Input • DC:12V 1A
Operating Temperature • 0°C ~ 50°C
Storage Temperature • -40°C to 70°C
Operating Humidity • 10% to 95% relative humidity no condensation
Storage Humidity • 5% to 90% relative humidity no condensation
Dimensions (L x W x H) • 225 x 120 x 35 mm
