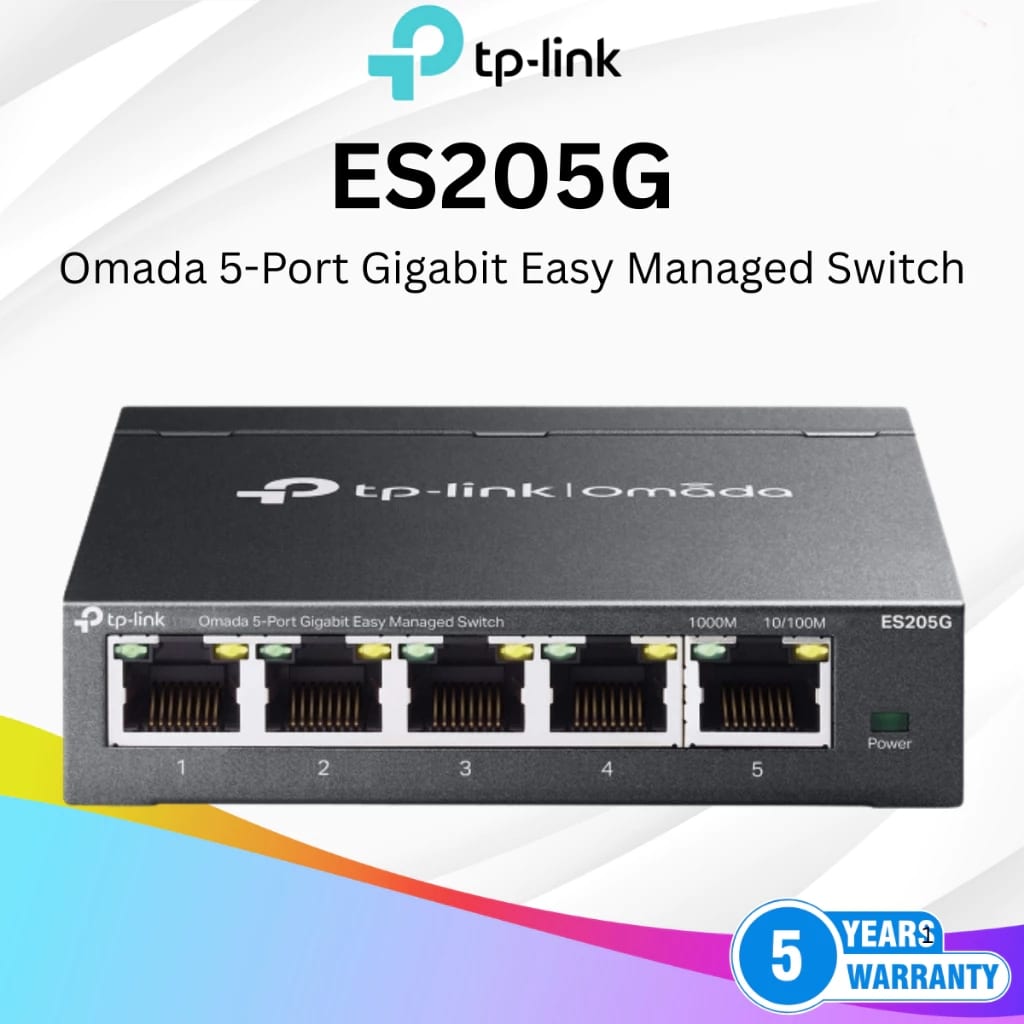

TPLINK ES205G Omada 5-Port Gigabit Easy Managed Switch

from 0 vote

0نظر

شناسه محصول: ES205G

گارانتی	صاف

ویژگی های محصول

گارانتی ۱۲ ماهه تکنولینک

ضمانت اصالت کالا

مرا اگاه کن

اطلاع از شگفت انگیز شدن محصول

از طریق:

D-link DMS-F109TP 8-port 2.5G PoE with 1-Port SFP

TPLINK ES205G Omada 5-Port Gigabit Easy Managed Switch

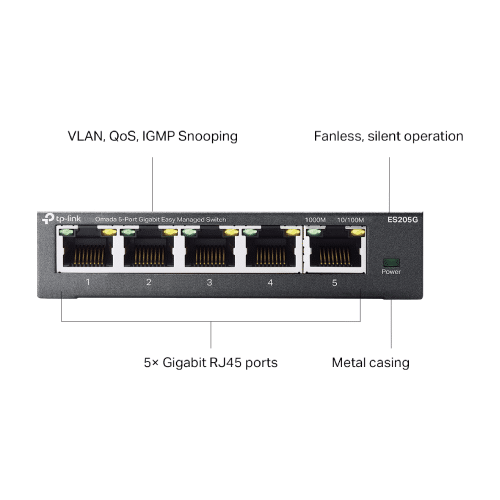

HARDWARE FEATURES
Interface	• 5× 10/100/1000 Mbps RJ45 Ports • AUTO Negotiation/AUTO MDI/MDIX
Fan Quantity	Fanless

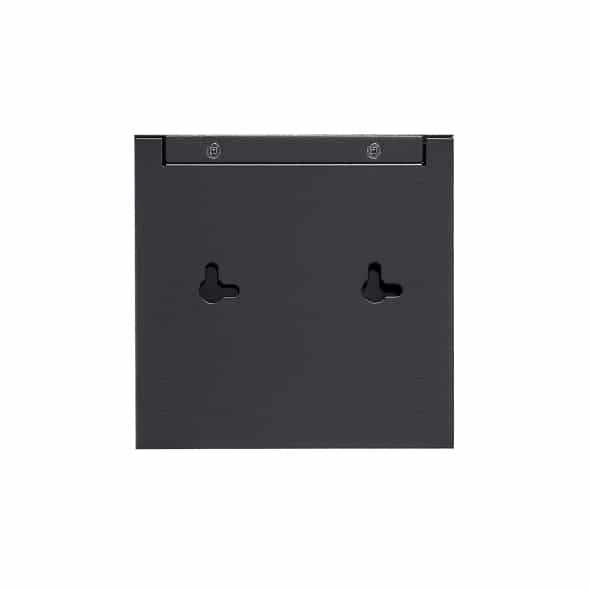

Installation	• Desktop • Wall Mount
Physical Security Lock	√
Power Supply	External DC Power Adapter (Output: 5 VDC/ 0.6 A)
Dimensions ( W x D x H )	3.9 × 3.9 × 1.0 in (100 × 98 × 25 mm)
Surge Protection	±6kV

SOFTWARE FEATURES
Quality of Service	• Port-based/802.1p/DSCP QoS • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rating Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control^△
L2 Features	• Static Link Aggregation • Loop Prevention / Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP
L2 Multicast	• IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave
VLAN	• MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID
Transmission Method	Store-And-Forward

MANAGEMENT
Omada App	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller
Cloud Access	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning	Yes. Requires the use of Omada Cloud-Based Controller
Management Features	• Web-based GUI • DHCP Client • Cable Diagnostics • Automatic Device Discovery^† • Batch Configuration^† • Batch Firmware Upgrading^† • Unified Configuration^†

OTHERS
Certification	FCC, CE, RoHS
Package Contents	• ES205G • Power Adapter • Installation Guide • Rubber Feet
Environment	• Operating Temperature: 0℃~40℃ (32℉~104℉) • Storage Temperature: -40℃~70℃ (-40℉~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing
